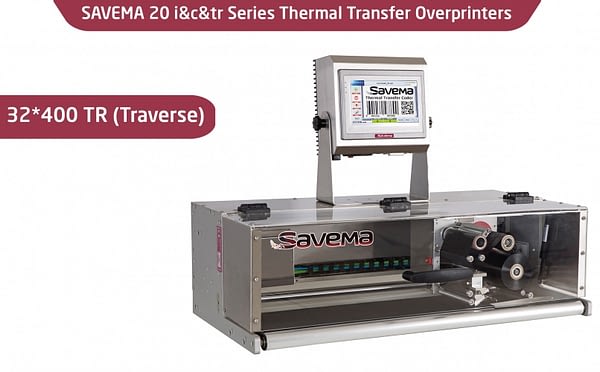

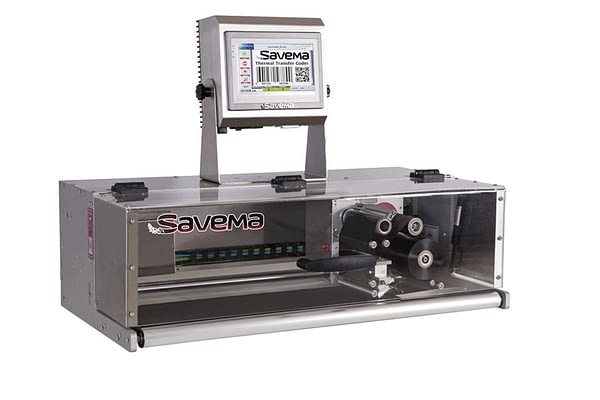

SAVEMA 20 Series 32*400 TR Traverse Thermal Transfer Printers

The high performance, low-cost SAVEMA Traverse Thermal Transfer Overprinters are versatile enough for printing fixed and variable text, data, and graphics. It is ideal for reproducing bar codes, real-time, sell-by dates, batch numbers, prices, source codes and much more. The special design bracket can be integrated multi-line packages for traversing systems. The units are suitable for all multi-line intermittent applications within the food, pharmaceutical cosmetics, and automobile spare parts industries and have the capability to code all kinds of 1D/2D Barcodes and DataMatrix codes.

Description

GENERAL FEATURES

  • Robust mechanical design needs no maintanence.
  • 32mm – 400mm print area.
  • 600 m. Ribbon Capacity.
  • 300 dpi (12 dots/mm) Print Quality.
  • 50 – 400mm per/second print speed.
  • Template Design PC Program “Sayasis S20” all features are free of charge.
  • Large memory for all label formats to be stored locally.
  • The USB can be used to transfer messages between printers and through computer too.

TECHNICAL FEATURES

* 32mm x 400mm print area.

* 600 meter ribbon capacity.

* Resolution 300 dpi (12 dots / mm)

* Print Speed 50 – 400 mm/sec.

* 7″ touch panel color control screen.

* 90 °, 180 °, 270 ° rotate features of the templates.

* Memory: 5000 Templates can be stored in the control screen memory.

* Power Supply: 100/240V 50/60 Hz.

* Programming: Real Date/Time, Text, 1D/2D Barcodes, GS-1 Barcodes, Logo, Counter (Serial No), Shift Code, Shape, Currency, Database Support, Table Creation Support.

* Barcode Types: 1D Barcodes ( EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPCA, UPC-E…), 2D Barcodes (Datamatrix, QR Code, PDF417, Aztec code…), GS-1 Barcodes ( GS1-128, GS1-Datamatrix, GS1-Databar Barcodes)

* Communication: RS-232, Ethernet, USB

* PC Programme: Sayasis S20 (All Features Free)
