SAVEMA 20 Series 32*40I Thermal Transfer Overprinters

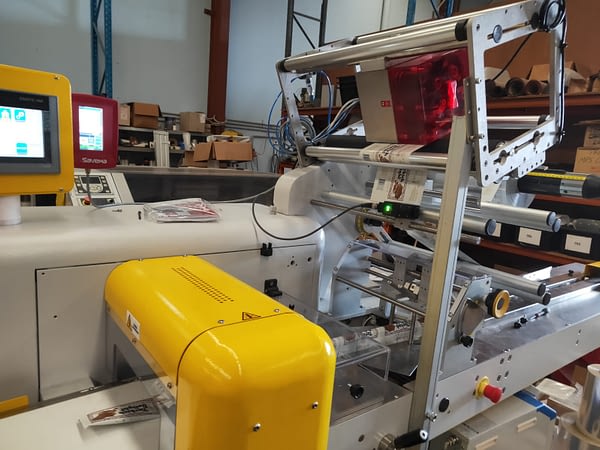

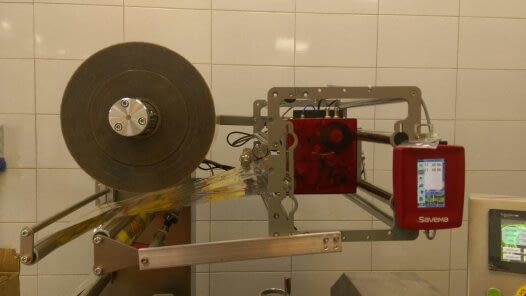

The high performance, cost-effective SAVEMA Thermal Transfer Overprinters (TTOs) are versatile enough for printing fixed and variable text, data, and graphics. It is ideal for reproducing bar codes, real-time, sell-by dates, batch numbers, prices, source codes and much more. Two-component models of brackets (Intermittent & Continuous) can be easily integrated into machines such as vertical and horizontal form-fill-seal systems, primary labelers, thermoformers, and overwrapping equipment. The units are suitable for all intermittent applications within the food, pharmaceutical cosmetics, and automobile spare parts industries and have the capability to code all kinds of 1D/2D barcodes and Datamatrix codes.

Categories: Printers, SAVEMA, TERMAL TRANSFER OVERPRINTER

Description

TECHNICAL FEATURES

* Robust mechanical design needs no maintenance.
* 32mm x 40mm Intermittent model print area.
* No air requirement / Magnetic
* 600 meter ribbon capacity.
* Resolution 300 dpi (12 dots / mm)
* Print Speed up to 300 mm
* 4.3″ touch panel color control screen.
* 90 °, 180 °, 270 ° rotate features of the templates.
* Memory: 5000 Templates can be stored in the control screen memory.
* Power Supply: 100/240V 50/60 Hz.
* Programming: Real Date/Time, Text, 1D/2D Barcodes, GS-1 Barcodes, Logo, Counter (Serial No), Shift Code, Shape, Currency, Database Support, Table Creation Support.
* Barcode Types: 1D Barcodes ( EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPCA, UPC-E…), 2D Barcodes (Datamatrix, QR Code, PDF417, Aztec code…), GS-1 Barcodes ( GS1-128, GS1-Datamatrix, GS1-Databar Barcodes)
* Communication: RS-232, Ethernet, USB
* PC Programme: Sayasis S20 (All Features Free)
